Injection Molding vs Insert Molding: What's the Difference and How Can 3D Printing Help?
Share
If you're in manufacturing or product development, you've probably heard terms like injection molding, insert molding, and 3D printed tooling thrown around. But what's the real difference between injection molding and insert molding? And where does 3D printing fit into all of this?
As a molding engineer, I’ll break down the technical aspects of these processes, how they compare, and how additive manufacturing (3D printing) can improve prototyping and production timelines.
What is Injection Molding?
Injection molding is one of the most common and cost-efficient ways to mass-produce plastic parts. The process works like this:
Thermoplastic resin pellets are melted inside a barrel.
The molten plastic is injected under high pressure into a steel or aluminum mold (aka the “tool”).
The plastic cools and solidifies into the shape of the mold cavity.
The part is ejected, and the cycle repeats—often in under 60 seconds.
It’s a closed-loop, high-volume method perfect for making parts with consistent geometry and tight tolerances. Think bottle caps, casings, enclosures, and thousands of other everyday plastic components.
What is Insert Molding?
Insert molding is a type of injection molding—but with a twist. Instead of molding just plastic, you place a pre-made insert (usually metal) into the mold before the plastic is injected. The molten plastic flows around and locks onto the insert, creating a hybrid part.
This is used for:
Threaded metal bushings
Electrical contacts
Strengthening components in load-bearing designs
Think of insert molding as a smart way to combine materials without having to assemble parts afterward. You reduce post-mold operations and improve product strength and function.
Technical Differences: Injection Molding vs Insert Molding
| Feature | Injection Molding | Insert Molding |
|---|---|---|
| Cycle Time | Faster, due to no need for insert placement | Slightly slower due to manual or automated insert loading |
| Tooling | Standard mold with no need for insert cavities | Custom mold with insert pockets and tighter tolerances |
| Part Design | All plastic, uniform geometry | Combo of materials; more complex geometry |
| Applications | Consumer goods, automotive interiors, packaging | Connectors, fasteners, medical devices, overmolded electronics |
One of the key considerations is mold design. Insert molds must accommodate the insert with precision to avoid short shots (incomplete fill), shifting, or flashing (plastic leaks). You often need features like core pins, undercuts, and shutoffs to handle complex geometries.
How 3D Printing Helps Both Molding Methods
3D printing isn’t just for prototyping anymore. In injection molding and insert molding, 3D printing can save time, reduce costs, and de-risk product development. Here's how:
Rapid Prototyping: Print functional prototypes before cutting steel. This ensures your design fits, functions, and looks right.

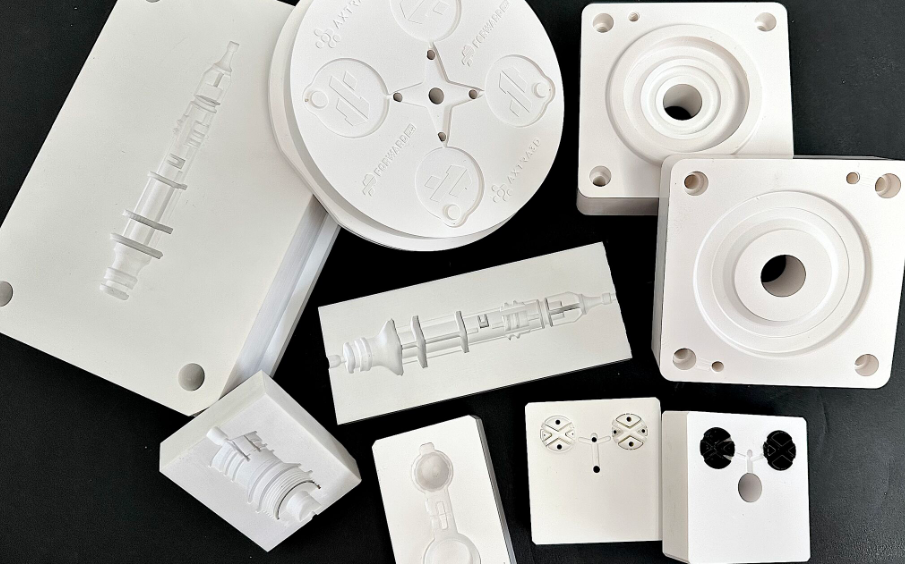

Bridge Tooling: Use 3D printed molds (like SLA or DMLS) to create short-run parts before you invest in full production tooling.
Insert Fit Testing: Print your inserts and part geometry to verify alignment and tolerances—before committing to expensive multi-cavity molds.
Tool Inserts and Fixtures: 3D printing can be used to produce jigs, fixtures, and even mold inserts to reduce lead time in R&D.
Especially with carbon fiber-filled filament or metal sintering, you can get surprisingly durable tooling from a 3D printer.
Which One is Better: Injection Molding or Insert Molding?
The answer? It depends on your product and use case.
Choose injection molding when:
You need high volumes of plastic-only parts
You want low cycle times and minimal complexity
Cost per part matters most
Choose insert molding when:
You need parts that combine metal and plastic
You're replacing an assembly with a single molded unit
Durability, conductivity, or structural reinforcement is needed
Optimizing Your Manufacturing Process
In 2025, speed, efficiency, and material performance matter more than ever. Whether you're a product designer, engineer, or sourcing specialist, knowing the difference between injection molding vs insert molding can help you make smarter decisions.
When combined with 3D printing for mold prototyping and rapid iteration, both of these processes can be faster and more cost-effective than ever before.
Need help choosing the right molding process for your part design? Reach out for a free design-for-manufacturing (DFM) review from a certified molding engineer.
